Troubleshooting Tool for Calendar

Updated

Overview

The Troubleshooting Tool is built to assist users in determining why certain calendar slots appear unavailable in the booking widget. By offering in-depth insights into slot availability, it helps users pinpoint the cause of blocked time slots and make necessary adjustments. Whether the issue stems from user availability, system configurations, or scheduling conflicts, this tool provides a clear, detailed overview—empowering users to refine their calendar settings for a smooth and efficient booking process.



How to Use the Troubleshooting Tool?

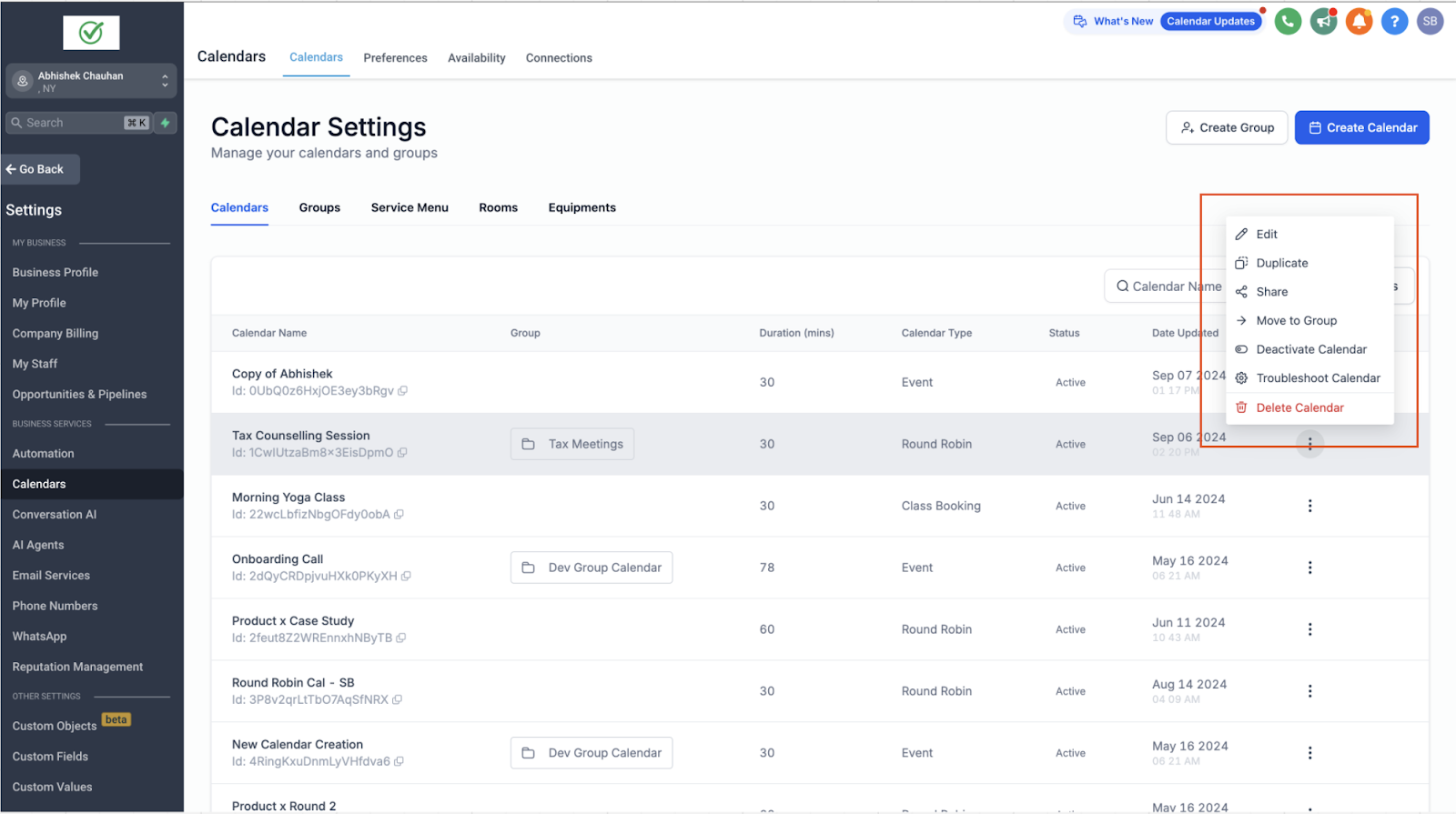

1. Access the Tool:

  • Navigate to Calendar Settings.
  • Select the calendar you want to troubleshoot.
  • Click the three dots menu (â‹®) and select Troubleshoot Calendar.

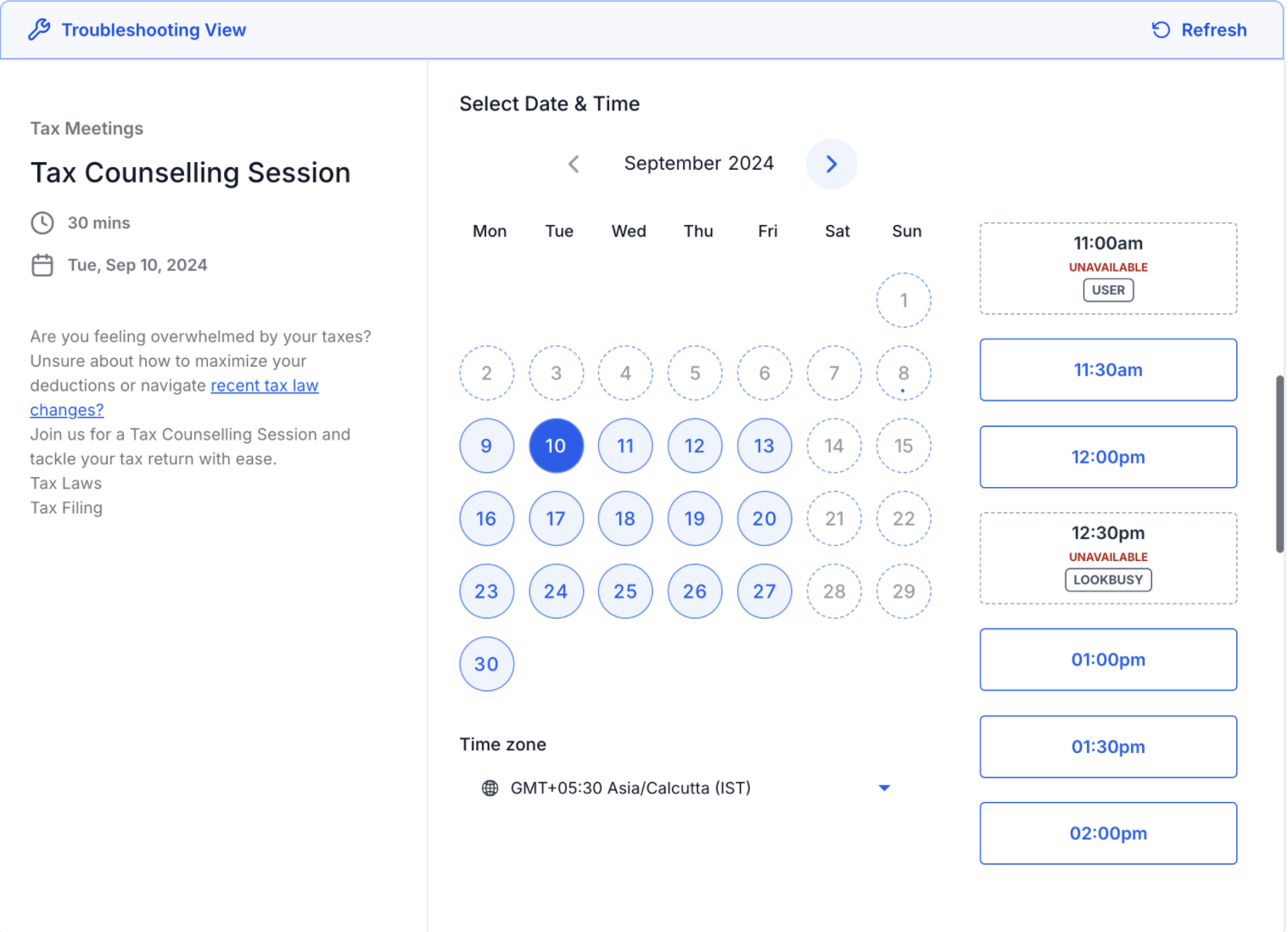

2. View Slots:

  • The troubleshooting view will display all potential slots.
  • For each unavailable slot, a code (with a description) will indicate the reason for its unavailability.





List of Codes & Descriptions

Below are the possible codes explaining why a slot is not available for booking:

  • USER: No user is available because they are either blocked by another event or fall outside their set availability.
  • COLLECTIVE: 1 or more users are unavailable for the collective appointment.
  • CONFLICT: A third-party event is blocking this slot.

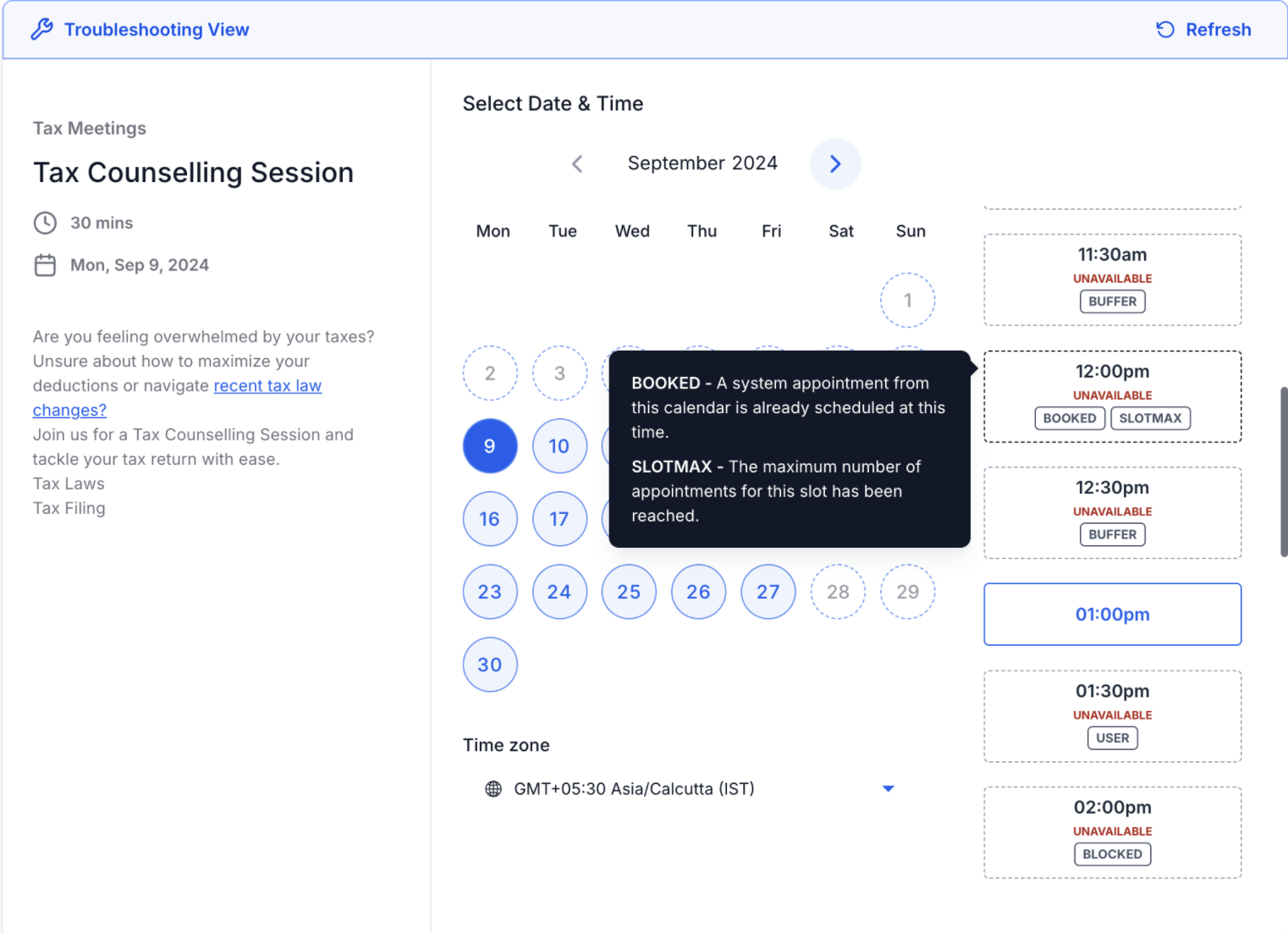

  • BOOKED: A system appointment is already scheduled at this time.
  • BLOCKED: A blocked-off time has been added for this duration.
  • NOTICE: The slot cannot be shown due to the minimum scheduling notice requirement.
  • TOOFAR: The slot is outside the allowed date range.
  • DAYLIMIT: The maximum number of appointments for the day has been reached.
  • SLOTMAX: The maximum number of appointments for this slot has been reached.
  • BUFFER: A pre/post buffer is applied, blocking this slot.
  • DURATION: The appointment duration is longer than the available time.
  • PAST: This slot is in the past.
  • LOOKBUSY: This slot is hidden due to the 'Look Busy' setting.
  • NO SEATS: The maximum number of available seats has been reached.
  • RESOURCE: A required resource (e.g., room or equipment) is not available.



Important Notes:

  • The tool first checks your calendar’s availability and meeting intervals to generate all potential slots. It then shows which of these slots are available and which are not.
  • For example, if your calendar availability is set from 10 AM to 12 PM and 6 PM to 8 PM with 60-minute meeting intervals, only the 10 AM, 11 AM, 6 PM, and 7 PM slots will be displayed, and their availability or unavailability will be shown accordingly for these four slots. If the calendar is unavailable on Saturdays, no slots will appear for that day.
